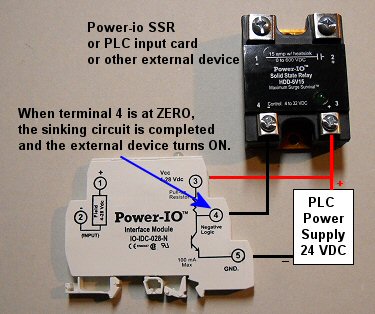

Power-io I/O Modules example: Terminal 4 on the I/O module is typically wired to a PLC's input card, or other product, that is expected to see a "sinking" signal, or pull-down signal. When terminal 4 is at zero, the circuit is completed, and the external device turns ON. The Power-io I/O modules can sink
up to 100mA. |
