The following product line is being discontinued. A recommended replacement is shown at:

For DC control input applications: C Family SSRs

For AC control input applications: C Family SSRs




Single phase, up to 50, 75, 100 amp, din rail contactor

Features

  • For larger amperage applications
  • I²T fuse is built-in, replaceable, and it has a fuse failure LED
  • Automatic shutdown on over-temperature situations
  • Universal mounting bracket for din rail or bolt-on applications
  • Zero crossing activation -- low EMI, low noise to nearby electronics
  • Internal, oversized thyristors for high inrush capability
  • 1200 volt peak blocking voltage
  • UL recognized, CSA, CE
 50, 75, 100 amp solid state contactor

Part Number

DDA-6V50   up to 50A, 660V max, 4-28 VDC activated Buy
DDA-6V75   up to 75A, 660V max, 4-28 VDC activated Buy
DDA-6V100   up to 100A, 660V max, 4-28 VDC activated Buy

Please note: the above models are being phased out, due to the lack RoHS compliance. A suitable replacement is one of the following:

  • HDA-6V50E-HS1.0 for applications up to 40 amps (same physical size as a DDA-6V50), shown at: H Family SSRs
  • HDA-6V90E-HS1.0 for applications up to 60 amps (same physical size as a DDA-6V50), shown at: H Family SSRs
  • CZ2H-IDC2 for applications up to 100 amps (similar physical size as a DDA-6V75), shown at: C Family SSRs
  • A CZ2H-IDC2 will replace 2 of a DDA-xxxx. From a price perspective, one CZ2H-IDC2 costs less than 2 of DDA-xxx AND it is stronger, smaller, and repairable.



DAA-6V50   up to 50A, 660V max, 100-280 VAC activated Buy
DAA-6V75   up to 75A, 660V max, 100-280 VAC activated Buy
DAA-6V100   up to 100A, 660V max, 100-280 VAC activated Buy

Please note: the above models are being phased out, due to the lack RoHS compliance. A suitable replacement is one of the following:

  • HAA-6V50E-HS1.0 for applications up to 40 amps (same physical size as a DDA-6V50), shown at: H Family SSRs
  • HAA-6V90E-HS1.0 for applications up to 60 amps (same physical size as a DDA-6V50), shown at: H Family SSRs
  • CZ2H-IAC2 for applications up to 100 amps (similar physical size as a DDA-6V75), shown at: C Family SSRs
  • A CZ2H-IAC2 will replace 2 of a DAA-xxxx. From a price perspective, one CZ2H-IAC2 costs less than 2 of DAA-xxx AND it is stronger, smaller, and repairable.


DDA temperature curves


Specifications

Part Number Line Voltage Range (VAC) Load Current Range (A RMS) Min Control Voltage & Current Draw Max Control Voltage & Current Draw Must Release Voltage

DC activated
DDA-6V50 48-660 .10-50 4VDC/6mA 28VDC/9mA 1 VDC
DDA-6V75 48-660 .10-75 4VDC/6mA 28VDC/9mA 1 VDC
DDA-6V100 48-660 .10-100 4VDC/6mA 28VDC/9mA 1 VDC

AC activated
DAA-6V50 48-660 .10-50 100VAC/5mA 280VAC/15mA 20VAC
DAA-6V75 48-660 .10-75 100VAC/5mA 280VAC/15mA 20VAC
DAA-6V100 48-660 .10-100 100VAC/5mA 280VAC/15mA 20VAC

Isolation 4000 volts
I²T fuse For 50 amp model: 63A or less, for example: Bussmann 63FE. For 75 or 100 amp model: 100A or less, for example: Bussmann 100FE. For installations >75 amps, or in warm installations, an external I²T fuse and fuse block can be used and a Power-io bus bar can be inserted in place of the internal fuse. See our fuse bulletin.pdf for additional fuse information.
Turn-on time <8.3 ms at 60hz
Turn-off time <8.3 ms at 60hz
Control Terminals Will accept #24-#10 AWG wire. Torque: 7-9 inch lbs.
Power Terminals Will accept #8-#3 AWG wire. Torque: 40 inch lbs.
Installation Leave a minimum of one inch below and 4 inches above these contactors for air ventilation. Leave one inch horizontally between units for air ventilation.

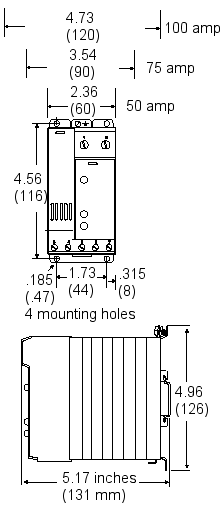

DDA size
solid state contactor

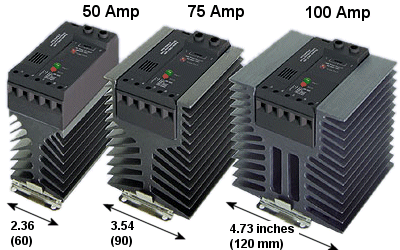

Zoomed in photo: 50, 75, 100 amp solid state contactors
