Power-io solid state relays and i/o modules

New solid state relays, solid state contactors, or din rail io modules.


solid state relays and heatsink

New heat sink, matches the width of the SSR

The new Power-io heat sink is 1.77 inches wide, which matches the width of our solid state relays. This pemits higher density installations when the amperage requirements are low to medium. Larger heat sinks are available if the amperage requirements are higher or if the cabinet temperatures are warmer. The Power-io HEATSK-DIN-2.0 can be din rail mounted or it can be attached with screws to your electrical enclosure.


thermal compound, thermal grease

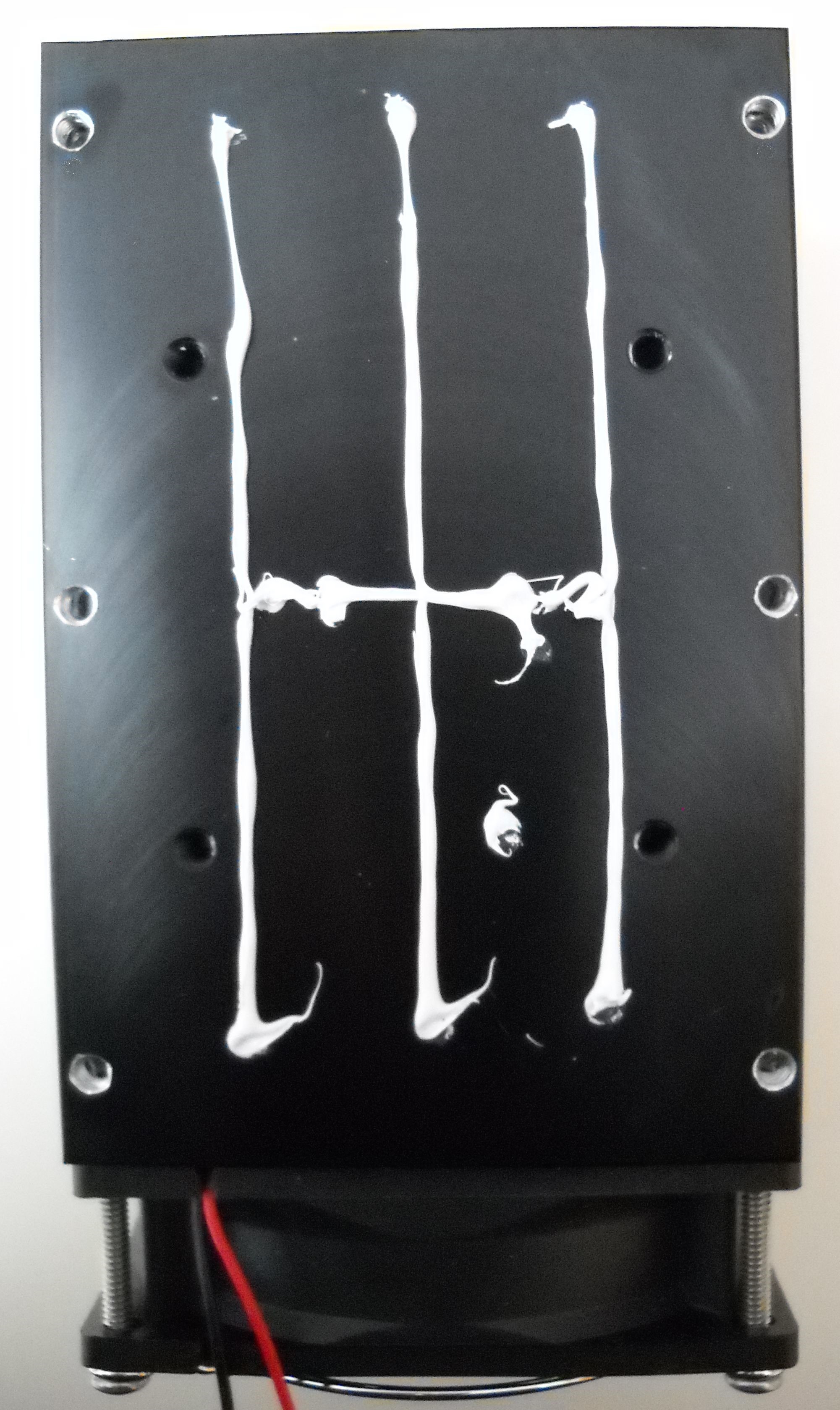

How to apply thermal compound (thermal grease)

All solid state relays (or computer CPUs or many other electrical devices) generate heat when they are working. A proper application of thermal compound helps to ensure the best thermal transfer from the device to a heat sink. In this example, we are showing the application of thermal compound on the Power-io C Family product. The Power-io can be switching up to 100 amps per channel, which is 200 amps total. This thermal rise can be effectively transferred to the Power-io heat sink while occupying a tiny footprint of less than 22 square inches of cabinet sub-plate.


 analog 4 to 20 input contactor

New 4-20mA input SSR, including high speed performance

The HMA product lines accepts an industry standard 4-20mA analog signal, or a potentiometer, and converts that control request into high speed on/off/on/off pulses for heater control. The switching is electrically-clean zero-crossing. The internal microprocessor calulates the minimum number of half sine waves, starting at 3 half sine waves, and adds additional ON or OFF half sine waves to meet the target. For longer heater life or high speed IR loads, sealing bars, IR heaters for extrusion preforms, or extruder die zones; the HMA can provide up to 20-40 precise on/off heat cycles per second. The HMA product is made in the USA.


solid state relay

New SSR products

Power-io introduces the new "Expanded and Enhanced" H family of solid state relays. The new models cover a wider amperage range, 1-90 amps (at 40ºC), a wider control input range of 3-32 VDC, a PLC-friendly current-limited control input requirement of 5.5 - 8mA, and the product is made in the USA. -- May 25, 2016


SSR heat sink

New, multiple SSR heat sinks

The heat sink family has been expanded to include several multi-zone heat sinks, with or without fans.


RoHS mosfet solid state relay

RoHS and CE now available in the DC switching mosfet or IGBT products

The popular HDD-E family of solid state relays are now available with RoHS and CE. For DC switching applications, PWM switching, alternative energy applications, and related DC installations, Power-io provides a wide range of voltage and amperage models.


Hydro electricity

6MW hydroelectric generators start with Power-io

The third largest user of hydroelectric power is Brazil. This brief application note shows a 6MW Francis Turbine system, using Power-io's 900 VDC solid state relay as part of the generator exciter circuit. Photos supplied by Semi, a premier manufacturer of turbines and control systems in Brazil.


IO-ODC

IO-ODC and IO-OAC modules for RoHS applications

Power-io continues to improve the product design to meet the 2014 RoHS Restriction of Hazardous Substances directive.

Many of the I/O modules are RoHS now, and several additional models are in RoHS transition


solid state relay

New 0-10 VDC analog input option

The CZ2H-IDC2 has been expanded to accept dual DC inputs OR one 0-10 VDC analog input.

The analog input option is jumper selectable. This permits ON/OFF/ON/OFF PWM control based upon a 1 second time period OR based upon half sine waves (8.3ms). The high speed half cycle PWM is used with fast responding loads such as IR heaters.


PayPal

Additional easy ways to process your orders

Power-io's online ordering system accepts MasterCard, Visa, Discover, and American Express credit cards. Purchases orders from pre-approved customer locations can also be entered. Now, PayPal has been added to the online check-out process, which is helpful for purchases from your mobile device.


K85

New Din Rail Controller, with local display -- temperature control, process control, analog control, and more.

The new K85 is a multi-purpose, yet simple, controller. Installed on a din rail, the controller accepts an analog input and generates multiple outputs. Applications include: industrial temperature controller, food processing temperature controller, EIA-485 communications remote controller, remote analog data point, remote digital output device, and more.


K30

New Din Rail Controller -- temperature control, process control, analog control, and more.

The new K30 is a multi-purpose, yet simple, controller. Installed on a din rail, the controller accepts an analog input and generates multiple outputs. Applications include: industrial temperature controller, food processing temperature controller, EIA-485 communications remote controller, remote analog data point, remote digital output device, and more.


Zener Diode

How to: use a voltage divider, or diode, to change the control input

By installing a voltage divider, or a zener diode, in front of the Power-io's control input, you can change the input range. For example, if you have a 48 VDC control signal from a solar application, using a voltage divider or diode, we can reduce that so that it is an acceptable control input signal.


igbt

New IGBT solid state relay -- model HDD-6V20E

The HDD Family of DC switching solid state relays has been expanded to include the new HDD-6V20E. This is an IGBT-based, DC switching, solid state relay, including a high performance driver. This provides:

  • Faster -- 16kHz switching for PWM loads
  • Cooler -- New Ultra Cool Technology™ thermal transfer design
  • Lighter weight -- Ideal for transportation applications

The HDD-6V20E is rated for switching up to 600 VDC and up to 20 amps. The product is in stock for immediate delivery. -- Mar 17, 2011.


Solar switch

Solar Applications:

Power-io is presently installed in solar applications throughout the world. Applications include: switching of DC diversion loads, switching of AC diversion loads, inverter applications, PWM of DC loads, motorized solar panel positioning systems, California Solar Panel Disconnects, Outback Power applications, and more. -- Oct 22, 2010.


IO Module

How to: Convert a Normally Open SSR to a Normally Closed SSR

By installing an IO Module in front of a solid state relay, you can invert a control signal. This is helpful for changing the logic of a solid state relay, or other similar device. -- Oct 13, 2010.


igbt

New IGBT solid state relay -- model HDD-9V30E

The HDD Family of DC switching solid state relays has been expanded to include the new HDD-9V30E. This is an IGBT-based, DC switching, solid state relay, including a high performance driver. This provides:

  • Faster -- 12kHz switching for PWM loads
  • Cooler -- New Ultra Cool Technology™ thermal transfer design
  • Lighter weight -- Ideal for transportation applications

The HDD-9V30E is rated for switching up to 900 VDC and up to 30 amps. The product is in stock for immediate delivery. -- Aug 2, 2010.


FedEx shipping

Fast shipping capability

Need it fast? Contact us for FedEx, UPS, DHL, courier, freight forwarder, or other shipping methods. -- Jan 18, 2010


RoHS mosfet solid state relay

RoHS mosfet solid state relays for dc switching applications

RoHS is now available in HDD-xxxxE family of mosfet or IGBT based solid state relay products -- Jan 5, 2010


dc switching solid state relays

New state laws restricting or prohibiting mercury relays

More states ban mercury. Power-io supplies solid state relays that can replace many types of mercury contactors or mercury displacement relays. The applications include: industrial heater contactors, motor starters, highway lighting contactors, stadium lighting systems, food cooking control systems, and more. -- Oct 28, 2009


I2T fuse

I2T fuses and fuse holders

Solid state contactors and other thyristor-based products are usually protected by I2T fuses. Power-io stocks a variety of I2T fuses that are often used with our products. This includes fuse and fuse holders: I2T fuses or fuses with L bracket tabs: L-Bracket 63FE or 100FE. -- May 25, 2009


recycle

Carbon footprint reductions

Power-io has an active program to reduce or recycle the amount of paper products used, recycle shipping containers, and has completely eliminated the purchasing of any new plastic "peanuts". We are involved in customer projects including: US DOE Solar Decathlon 2009 Solarhouse -- MST.edu; California solar array disconnects; solar panel positioning systems; solar/battery invertors; wind turbine control systems; vehicle hydro gas; and more. -- March 1, 2009


mercury contactor recycling

Mercury contactor recycling

Power-io manufactures solid state relays and contactors that are often used to replace mercury contactors. Mercury contactors (also called: mercury relays, MDR, or mercury displacement relays) are restricted or prohibited in many states in the USA, and in many countries throughout the world, due to 40-100+ grams of mercury inside each one. Bethleham Apparatus provides an EPA approved way of legally disposing of small quantities of mercury contactors. Visit: Mercury recycling kit -- Dec 19, 2008 (Power-io is NOT affliated with Bethleham Appartus.)


custom igbt

CDD-1V300 Family of high amperage, dc switching, IGBTs

Power-io manufactures custom solid state switching products for unique applications. For DC installations, we offer DC switching of loads from 200-600 amps, or momentary loads up to 1000 amps DC. The control input board has a standard high speed capability of up to 2 kHz PWM frequency. Visit: DC contactors for custom applications -- Sept 5, 2008


igbt

Dual IGBTs (or back-to-back IGBTs) for high speed switching of an AC load

The Power-io HDD-6V15 is a completely packaged IGBT module that includes a high speed 15 kHz control input circuit. Normally this product is used to switch DC loads such as solar array panels, vehicle applications, and hydrogen-generating fuel cells. When you install 2 IGBTs in a back-to-back configuration, you can achieve extremely high speed switching of an AC sinewave. Visit: dual IGBT application example -- Aug 1, 2008


Power-io Delta module

Distributed power control + temperature / process control + communications

The Power-io C Family of solid state contactors provides a distributed control architecture where you can place the control capability directly on-the-machine. With high density power switching capability from 1-100 amps, Power-io has solid state contactors for most industrial applications. Combine that with distributed temperature or process controllers, and you can build a control system that reduces installation costs and wiring costs while increasing single-zone integrity. Visit: Power-io and distributed controllers -- July 11, 2008


heat sink

Custom heat sinks for multi-zone applications

Power-io heat sinks are available in custom sizes for multi-zone applications. For high density mosfet or IGBT installations, aluminum extrusion heat sinks can be cut to your specifications. The "6 Pack" shown here permits 6 solid state relays to be installed on a 22 inch extrusion. 6-pack-- April 14, 2008


Green Power-io

Green Power-io. Recycle, reuse, reduce waste.

Power-io will meet its internal 2007 environmental goal of reducing paper and packaging waste by 12%. In addition, no new foam "peanuts" have been purchased for the last 2 years. For customer applications: 1) Power-io continues as an environmentally friendly alternative to mercury relays for electrical switching, 2) Power-io is a supplier to many wind or solar power installations, and 3) Power-io is a supplier to alternative transportation applications. -- Nov 27, 2007


h bridge relay

H Bridge using 4 solid state relays for reversible VDC loads

For reversible DC motors, reverse polarity DC charging systems, and some solar cell applications; you can use 4 Power-io solid state relays. The Power-io HDD relays are used in pairs to control clockwise vs counter clockwise performance. Additional information is at: H Bridge application -- Oct 18, 2007


thermal pads

Solid state relay thermal pads

The Power-io thermal transfer pads replace thermal grease for use with solid state relays. The dry, die-cut pads provide the optimized amount of high performance thermal grease without any mess or installation delays. The thermal impedance is rated at 0.009 °C-in²/W, which is outstanding. Additional information is at: Solid state relay thermal pads -- Sept 4, 2007


gefran

Distributed power control + temperature / process control + communications

The Power-io C Family of solid state contactors, along with control modules from Gefran, allow on-the-machine distributed control capability. A 4 zone temperature/process controller connects to 4 zones of Power-io power control for a modular, distributed architecture that requires less than 1 cubic foot per 4 zones. That's 4 thermocouples, 4 PID control zones, 4 CTs, 4 100 amp power zones, and more, per foot! Interconnected by Modbus, Ethernet, DeviceNet or CANopen, these control zones provide a powerful and flexible control platform for industrial automation. For more information, visit: Distributed control made easy -- Aug 10, 2007


3 phase contactor

New, improved, analog input 3 phase solid state contactor

The popular DMA3 solid state contactor has been improved. The heat sink has been extended forward by 0.9 inches (23 mm) resulting in an 11% improvement in thermal performance. The DMA3 accepts an analog 4-20mA control input OR a potentiometer input; and provides a electrically clean, high speed, zero-crossing output for electric heaters, resistive heater coils, food cookers, pizza ovens, and other heater applications. The 4-20mA input is directly compatible with PID controllers or PLCs. Please visit: DMA3 data page -- June 7, 2007


3 phase contactor

New, improved 3 phase solid state contactor

The popular DDA3 solid state contactor has been improved. The heat sink has been extended forward by 0.9 inches (23 mm) resulting in an 11% improvement in thermal performance. This change provides a heat sink with better capability in industrial applications and warm environments. This improvement is being phased in on new orders starting in May, 2007. Please visit: DDA3-6V75T-H data page -- May 23, 2007


io-odc-r0-60

IO Modules -- In stock for fast delivery

The IO modules provide a solid state switching output in a tiny DIN rail package. Activated by a PLC, TTL signal, SCADA system, or controller; the IO modules offer 4000 volt isolation and a fused 3 amp output. IO-OAC modules supply an AC switched output. IO-ODC modules supply a DC switched output. I/O module applications or buy IO modules -- Feb 14, 2007


dc switching solid state relays

New DC switching solid state relays

The new HDD-2V25 is used for switching any voltage from 0-200 VDC and any amperage up to 25 amps maximum. These solid state relays use Power-io's high speed 15 khz switching speed for precision performance from simple applications to complete PWM installations. Applications include automatic test equipment, DC inductive loads, UMV drones, and more. -- Nov 12, 2006


dc switching solid state relays

New state laws restricting or prohibiting mercury relays

Power-io supplies solid state relays that can replace many types of mercury contactors or mercury displacement relays. The applications include: industrial heater contactors, motor starters, highway lighting contactors, stadium lighting systems, food cooking control systems, and more. State laws and penalities increase. -- Aug 24, 2006


solid state contactor with Alert

C Family -- Solid State Contactors -- ALERT Output feature

The C Family of solid state contactors is now is available with an ALERT output. For use with PLCs, PCs, SCADA systems, or controllers, the ALERT output activates if a SCR fails "ON", fails "OFF", the external fuse is "Open", the external load is "Open", or if a thermal problem exists. In addition, the ALERT output monitors the fault conditions that occur upon machine start-up when some of these conditions may not be apparent.

Two individual power channels OR as a 2 pole contactor. Up to 100 amps per pole. Jan 7, 2006


dc switching solid state relays

DC switching solid state relays -- fastest, coolest, more amps

The DC switching solid state relay family has been expanded to include a 0-60VDC range at up to 75 amps. This additional model is used for 12 and 24 VDC switching such as test equipment, drone vehicle applications, robotic equipment, solar cell energy systems, battery back-up systems, and more. The HDD-06V75 offers the same high speed switching capability, at 15 KHz, that is an exclusive Power-io capability for high performance PWM applications over a variety of voltage and amperage ranges. High speed turn-on and turn-off capability offers precise performance AND it reduces thermal rise. December 5, 2005


din rail solid state relays ssr contactors

Ultra Power Cooler™ Heat Sink for multiple applications

The Ultra Power Heat Sink is now available in several customized configurations. Standard options include: single SSR layout, dual SSR layout, extended lengths from 6 - 36 inches, and customer-specific modifications. The massive cooling capability is beneficial with higher amperage SSRs, IGBT modules, or very warm installations. August 21, 2005


din rail solid state relays ssr contactors

New -- C Family -- Solid State Contactors

Most rugged, smallest installed size, cost effective -- the new C Family of solid state contactors represent the easiest replacement for mercury or electromechanical contactors. The small width of just 3.1 inches provides 2 power switching channels of up to 100 amps per channel. Install it as a 2 pole contactor, 2 individual poles, or gang units together for multi-pole applications with high power switching every 1.6 inches! The C Family is ideal for applications including: industrial heater contactors, 2-leg break heater contactors, high inrush motor starters, DOT lighting contactors, stadium lighting systems, three phase contactor installations, and more. May 18, 2005


UPC heat sink

New -- Ultra Power Cooler™ Heat Sink

Solid state relays are semiconductor devices that generate heat in proportion to the quantity of amps being switched. Heat sinks capture that thermal rise and dissipate it. Heat sinks are rated by a ºC/W number that represents: "for every watt of heat generated, the solid state relay will increase by xºC". For example: if you put 30 watts of heat on a 3ºC/W heat sink, the solid state relay's internal SCR dies will rise 90ºC (194ºF) above the ambient temperature. The new, 80 mm (3.15 inches) wide Ultra Power Cooler heat sink provides a 0.2ºC/W rating that makes it ideal for high amperage solid state relays, high ambient temperature areas, or high density installations. Power-io manufactures a variety of heat sinks for industrial, military, or commercial installations. February 16, 2005


90 amp solid state relay

New -- 90 and 125 amp solid state relays

The popular H family of solid state relays has been expanded with two new high current models offering 90 and 125 amp AC switching outputs. The higher amperage models are ideal for high inrush loads or higher amperage switching. When used at lower amperage switching, such as 20-75 amps, these new models offer cooler performance while ensuring a higher margin of safety against amperage inrush problems. Both models have the Maximum Surge Survival™ circuit for outstanding performance and long life in industrial, laboratory, military, or appliance installations. The models use a precision zero crossing method for the lowest possible EMI (noise) without additional filters or other add-ons. Low noise is an international CE requirement as well as a requirement for medical, test equipment, or other precision applications. January 9, 2005


electronica

Electronica Show -- Munich, Germany

Power-io will be exhibiting at the Electronica Show in Munich, Germany, on November 9-12. We are located in the open-air north/south area, #A5, Stand 529. Our local distributor, Sinus Electronic, will be happy to assist with details about solid state contactors, SSRs, and related I/O products. November 6, 2004

solid state relays on a heat sink

Solid state relays, pre-assembled for fast installations

Power-io now offers custom solid state relay assemblies. The "Tower of Power" shown here uses 6 solid state relays that provide up to 50 amps of switching per SSR. For multi-zone applications, several towers can be quickly installed, decreasing the local installation time and cost. In addition to multi-zone applications, Power-io can provide:

  • individual SSR + heat sink;
  • SSR + MOV + heat sink;
  • SSRs + fuses + heat sinks;
  • 3 phase terminal block + many SSRs + fuses + wire harness;
  • custom length heat sinks or custom aluminum extrusions;
  • and other combinations.

The Power-io design layout and assembly labor is performed in the USA so rapid delivery of prototype quantities is standard policy. Contact us with your specific requirements. July 1, 2004


50 amp solid state contactor

50 amp contactor -- small size and built-in fuse saves time and money

For switching up to 50 amps, the DDA-6V50 and DAA-6V50 offer a small size and big savings. The universal solid state contactor can switch any voltage from 48-660 volts AC; is activated by a 4-28 vdc signal (model DDA) or 100-280 vac signal (model DAA); and includes a built-in I²T fuse and fuse holder. LED indicators show: green = control input on, red = fuse failed, and red = over-temperature problem, contactor requested to turn off until the problem clears. Finger safe terminals and din rail mounting means fast installations, reducing your costs and downtime. May 6, 2004


dc switching solid state relays

DC switching solid state relay -- faster, cooler, more rugged

For switching 1-40 amps of DC power, the HDD family is ideal for switching DC loads, DC servos, or DC robotics. The relays are tested at 15,000 on/off cycles per second for fast response to command signals. With a control input requirement of just 4-32vdc and 6-10mA, the relays are compatible with standard TTL logic systems, PLCs, PCs, or customized control systems. The solid state relays have no parts to wear out and they are immune to mechanical contact bounce. High speed applications include: robotic control, CNC motor positioning, PWM pulse width modulated dc motors, and X-Y positioning motors using high acceleration, low-inertia, precision start/stop capabilities. Other applications include: DC vending machine motors, battery back-up systems, automotive or truck applications, drone vehicles, and racing boat control (trim, pumps, fuel management). The green LED provides quick, input status indication. March 22, 2004


network io to power io

Real POWER in the palm of your hand

For switching up to 100 amps of power, the Power-IO solid state contactor is an ideal unit to replace mechanical or mercury contactors. For heater applications, motor starter applications or general power switching; Power-IO provides a wide variety of products to fulfill these requirements. In addition, Power-IO does custom power engineering so if you need a particular feature, amperage, voltage, frequency, or diagnostics capability, contact us for further information. February 24, 2004


network io to power io

Convert network i/o into power i/o

There are hundreds of network i/o, fieldbus i/o, or home automation i/o products. Power-IO provides the ability to convert those i/o nodes into power switching nodes that are rated for 0.1 to 100 amps. In addition, the 4000 volt isolation of every Power-io point ensures better safety for personnel and machinery while reducing ground loops. January 31, 2004


io modules, din rail i/o

Din rail i/o modules

Din rail i/o modules provide 4000 volt isolated inputs and 4000 isolated outputs in an industry-leading ultra high density package. The input modules accept a wide range of Vac or Vdc inputs. The output modules provide a fused output that is rated up to 3 amps for switching Vac or Vdc loads. Ideal for PLC isolation, PC automation, or fieldbus interface applications. November 16, 2003


motor starter solid state relays ssr contactor

Solid state motor starters

Power-IO supplies solid state motor starters that are capable of turning on industrial motors up to 2 HP single phase, or up to 5 HP three phase. The solid state motor starter uses the precise, zero-crossing and Maximum Surge Survival features that are standard in the Power-IO "H" family of hockey puck size, solid state relays. In addition, Power-IO can provide the units pre-assembled onto an optimized heat sink, including an additional motor starter MOV and a clear, finger-safe protective cover. October 2, 2003


solid state relays ssr contactor

Din rail, heat sinks for "H" hockey puck installations

The universal heat sinks are able to be din rail mounted or panel mounted. These heat sinks are specifically engineered to provide optimum performance while occupying an absolute minimum of space inside your electrical cabinet. Designed for single SSR installations, or for multiple SSRs by using the "6 pack" model. In addition, we can extrude custom length heat sinks that match your unique requirements. September 14, 2003


solid state relays ssr contactor

New, three phase, solid state relay for din rail or panel mounting.

Edge-to-edge, the "D" (Din Rail) family provides more amps per square inch. This product line provides for 25 amps and 35 amps per leg for three phase power control. Including all of the latest international requirements, this product family requires NO SPACE between relays (on the same din rail) for cooling -- an industry improvement that reduces your panel requirements by 30-60% compared to other din-rail, solid state relay products. August 22, 2003


din rail solid state relay ssr contactor

New, international ready, din rail solid state relay.

Edge-to-edge, the mini "D" (Din Rail) family provides more amps per square inch. This includes models for 25 amps and 40 amps; the new Maximum Surge Survival™ technology; the latest international specifications including the A1, A2, L1, T1 terminal markings; a green LED for control input status; the latest CE specification EN 60947-4-3; and NO need for external filters in order to meet the CE noise specifications. Installation-friendly: less than 1.4 inches wide (25 amp unit) or 2.4 inches wide (40 amp unit), with finger-safe caged terminals and a universal mounting bracket for Din Rail mounting or panel mounting. The new "D" design requires NO SPACE between relays for cooling -- an industry improvement that reduces your panel requirements by 30-60% compared to other din-rail, solid state relay products. Typical in stock inventory is at: inventory. July 21, 2003
